ASTM A36 Hot Galvanized SSAW welded carbon pipes

ASTM A36 Hot Galvanized SSAW welded carbon pipes

SSAW steel pipe means spiral pipe, which is made of hot-rolled steel plates.

Generally price for SSAW steel pipe is lower than that of ERW steel pipe and LSAW steel pipe when it comes to the same steel grade and standard. SSAW steel pipe is usually used to transfer water, oil, or gas due to the big size.

Production Process: Spiral Submerged- Arc Welding

Pipe Spec:

1 Out Diameter: 219.1 mm – 2540mm (8"-100")

2 Wall Thickness: 6mm - 25.4mm Length:6 – 22 m

3 Standard: API 5L, API 5CT, GB/T9711.1, SY5037-2000

4 Steel Material:Q235A, Q235B, Q345, ASTM A53/106/A36, API 5L GR.A/B, L245 L290 X42 X46 X70 X80, S355, S275 etc

5 Processing: Spiral Submerged- Arc Welded Steel Pipe

6 Surface Treatment: Hot Galvanizing, Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

7 Usage: Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling, chemical industry, power plant, Offshore platform etc.

8 Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test, Exterior Size Inspection, Hydrostatic Test, X-ray Test

Galvanizing Spec:

1. Production Standards: BS1387, ASTMA53/500/123-00, EN10255/10219, GB/T13912, EN39, EN ISO 1461, DIN2391, IS2062, AS/NZ 4680
2. Zinc Coating: Pre-galvanized type: 60-150g/m²
Hot-dipped galvanized type: 200-400m²

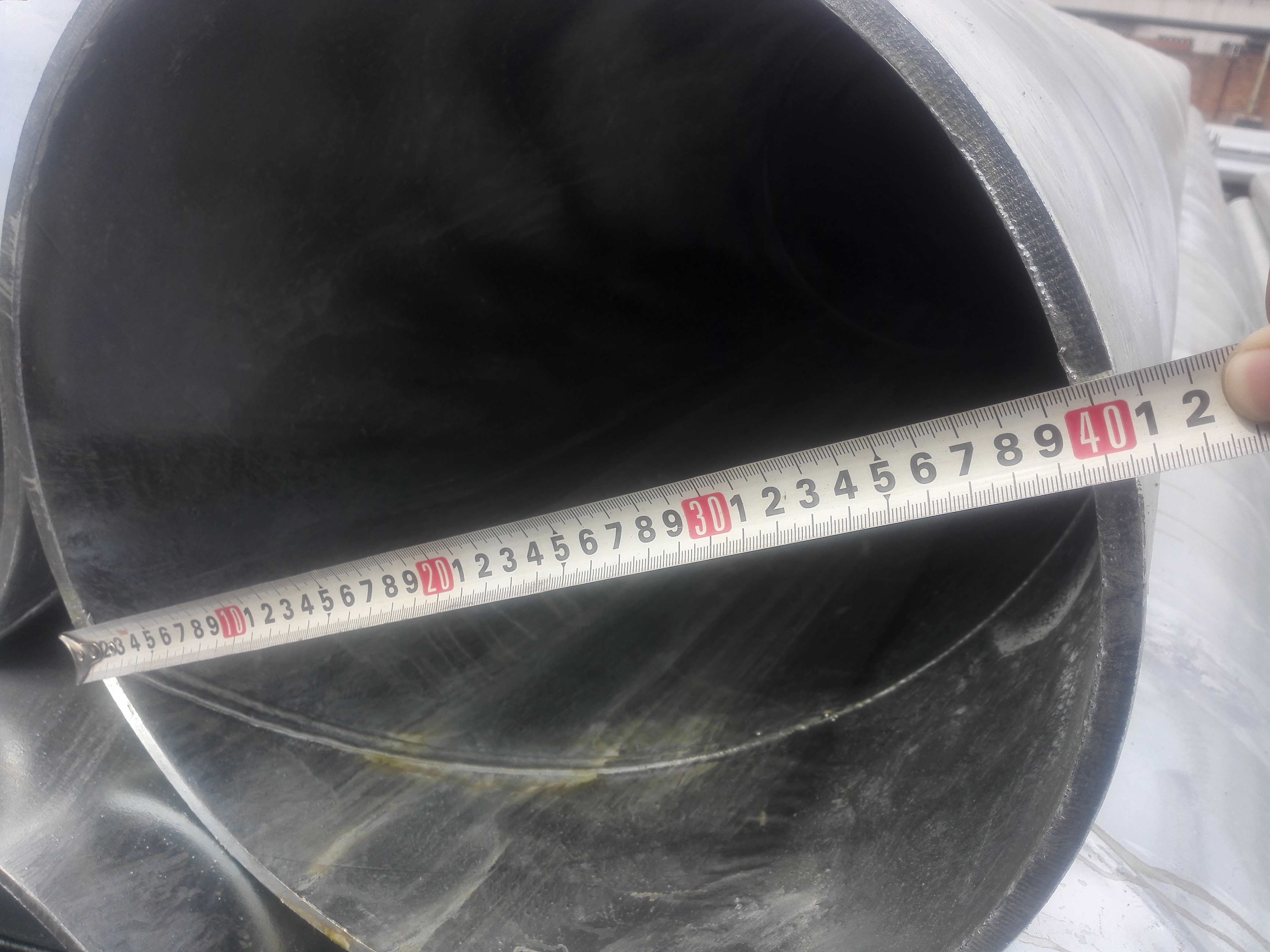

ASTM A36 Hot Galvanized SSAW welded carbon pipes Images
